GM 4L80-E Performance Transmission Pkg (Up to 800 lb-ft of Torque) for LS engines

GM 4L80-E Performance Transmission Pkg (Up to 800 lb-ft of Torque) for LS engines

Custom built to your specifications. Please complete our Automatic Transmission Tech Sheet Form. Please allow a 6-8 week lead time on all custom automatic transmissions.

Package Includes:

  • BOWLER TRU-STREET 4L80E TRANSMISSION
  • DESIGNED FOR LS1, LS3, LS7 MOTORS (CAN ALSO BE SETUP FOR LS9, LSX AND LSA MOTORS)

* EXCELLENT FOR VEHICLES THAT ARE EQUIPPED WITH ENGINES PRODUCING UP TO 800 FT LBS OF TORQUE.

* DOES NOT INCLUDE DRIVESHAFT OR CROSSMEMBER.

Transmission Details:

    • ALL NEW STEELS, SEALS & GASKETS
    • UPGRADED HIGH ENERGY FRICTION PLATES
    • NEW OEM SOLENOID (EPC, TCC, PWM, 3-2 CONTROL, SHIFT SOLENOID A & B, AND MANIFOLD PRESSURE SWITCH.
    • NEW OVERDRIVE & LOW ROLLER SPRAGS
    • BILLET 300M INPUT SHAFT
    • SONNAX NO WALK OUT REAR BUSHING WITH ROLLER BEARING
    • UPDATED 34 ELEMENT INTERMEDIATE SPRAG
    • UPDATED REAR CASE BUSHING
    • WIDE KICKDOWN BAND
    • INCREASED PRESSURE FOR IMPROVED CLUTCH LIFE
    • BLUE PRINTED VALVE BODY & PUMP
    • UPDATED BOOST VALVE SYSTEM
    • UPDATED SERVO PISTON
    • UPDATED SHIFT VALVE SPRINGS
    • UPDATED SONNAX COAST CLUTCH APPLY DESIGN
    • BETTER LUBRICATION SYSTEM
    • ELECTRONIC SPEED SENSOR * IF MECHANICAL SPEEDOMETER IS REQUIRED, YOU CAN PURCHASE OUR MECHANICAL SPEEDOMETER SETUP FOR ADDITIONAL COST
    • ALL NEW TORRINGTON BEARINGS
    • NEW OEM SHALLOW STEEL PAN
    • COMPLETE BOWLER INSPECTED & DYNO TESTED
    • BILLET TRIPLE LOCK 265MM STALL CONVERTER WITH BRAISED FINS & BILLET APPLY PISTON (TRIPLE DISC LOCKUP)* STALL SPEED TO BE BUILT TO THE VEHICLE SPECIFICATIONS, OPTIONS RANGE FROM 2400 – 4500 STALL)
    • 24 MONTH LIMITED / CONDITIONAL WARRANTY FROM THE DATE OF PURCHASE
    • BOWLER DEPENDABILITY & DURABILITY

INCLUDED ACCESSORY PACKAGE

    • SFI 6 BOLT FLEXPLATE AND CRANK ADAPTER FOR LS MOTORS (CAN BE ORDERED WITH 8 AND 9 BOLT CRANK AS NEEDED)
    • CONVERTER DUST COVER
    • OEM FILL TUBE AND DIP STICK
    • ENERGY SUSPENSION TRANSMISSION MOUNT
    • EXTERNAL TRANSMISSION COOLER W/ -6AN FITTINGS
    • CONVERTER BOLTS
    • 14 QUARTS ROYAL PURPLE MAX ATF
    • INPUT AND OUPUT SPEED SENSORS
    • COMPUSHIFT CONTROLLER

Install Guide

$4,587.36

Original: $13,106.75

-65%
GM 4L80-E Performance Transmission Pkg (Up to 800 lb-ft of Torque) for LS engines—

$13,106.75

$4,587.36

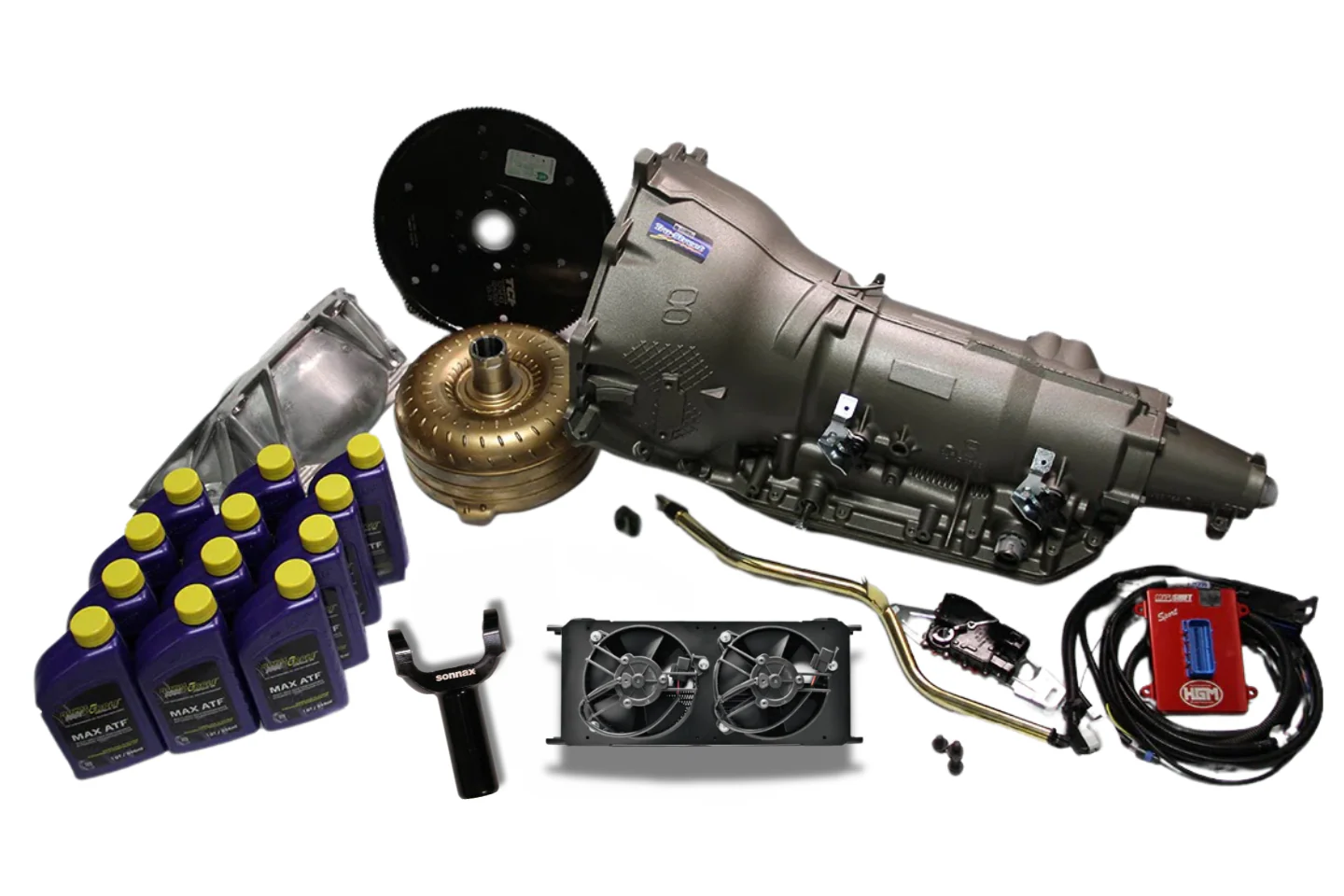

Product image 1

Description

Custom built to your specifications. Please complete our Automatic Transmission Tech Sheet Form. Please allow a 6-8 week lead time on all custom automatic transmissions.

Package Includes:

  • BOWLER TRU-STREET 4L80E TRANSMISSION
  • DESIGNED FOR LS1, LS3, LS7 MOTORS (CAN ALSO BE SETUP FOR LS9, LSX AND LSA MOTORS)

* EXCELLENT FOR VEHICLES THAT ARE EQUIPPED WITH ENGINES PRODUCING UP TO 800 FT LBS OF TORQUE.

* DOES NOT INCLUDE DRIVESHAFT OR CROSSMEMBER.

Transmission Details:

    • ALL NEW STEELS, SEALS & GASKETS
    • UPGRADED HIGH ENERGY FRICTION PLATES
    • NEW OEM SOLENOID (EPC, TCC, PWM, 3-2 CONTROL, SHIFT SOLENOID A & B, AND MANIFOLD PRESSURE SWITCH.
    • NEW OVERDRIVE & LOW ROLLER SPRAGS
    • BILLET 300M INPUT SHAFT
    • SONNAX NO WALK OUT REAR BUSHING WITH ROLLER BEARING
    • UPDATED 34 ELEMENT INTERMEDIATE SPRAG
    • UPDATED REAR CASE BUSHING
    • WIDE KICKDOWN BAND
    • INCREASED PRESSURE FOR IMPROVED CLUTCH LIFE
    • BLUE PRINTED VALVE BODY & PUMP
    • UPDATED BOOST VALVE SYSTEM
    • UPDATED SERVO PISTON
    • UPDATED SHIFT VALVE SPRINGS
    • UPDATED SONNAX COAST CLUTCH APPLY DESIGN
    • BETTER LUBRICATION SYSTEM
    • ELECTRONIC SPEED SENSOR * IF MECHANICAL SPEEDOMETER IS REQUIRED, YOU CAN PURCHASE OUR MECHANICAL SPEEDOMETER SETUP FOR ADDITIONAL COST
    • ALL NEW TORRINGTON BEARINGS
    • NEW OEM SHALLOW STEEL PAN
    • COMPLETE BOWLER INSPECTED & DYNO TESTED
    • BILLET TRIPLE LOCK 265MM STALL CONVERTER WITH BRAISED FINS & BILLET APPLY PISTON (TRIPLE DISC LOCKUP)* STALL SPEED TO BE BUILT TO THE VEHICLE SPECIFICATIONS, OPTIONS RANGE FROM 2400 – 4500 STALL)
    • 24 MONTH LIMITED / CONDITIONAL WARRANTY FROM THE DATE OF PURCHASE
    • BOWLER DEPENDABILITY & DURABILITY

INCLUDED ACCESSORY PACKAGE

    • SFI 6 BOLT FLEXPLATE AND CRANK ADAPTER FOR LS MOTORS (CAN BE ORDERED WITH 8 AND 9 BOLT CRANK AS NEEDED)
    • CONVERTER DUST COVER
    • OEM FILL TUBE AND DIP STICK
    • ENERGY SUSPENSION TRANSMISSION MOUNT
    • EXTERNAL TRANSMISSION COOLER W/ -6AN FITTINGS
    • CONVERTER BOLTS
    • 14 QUARTS ROYAL PURPLE MAX ATF
    • INPUT AND OUPUT SPEED SENSORS
    • COMPUSHIFT CONTROLLER

Install Guide
